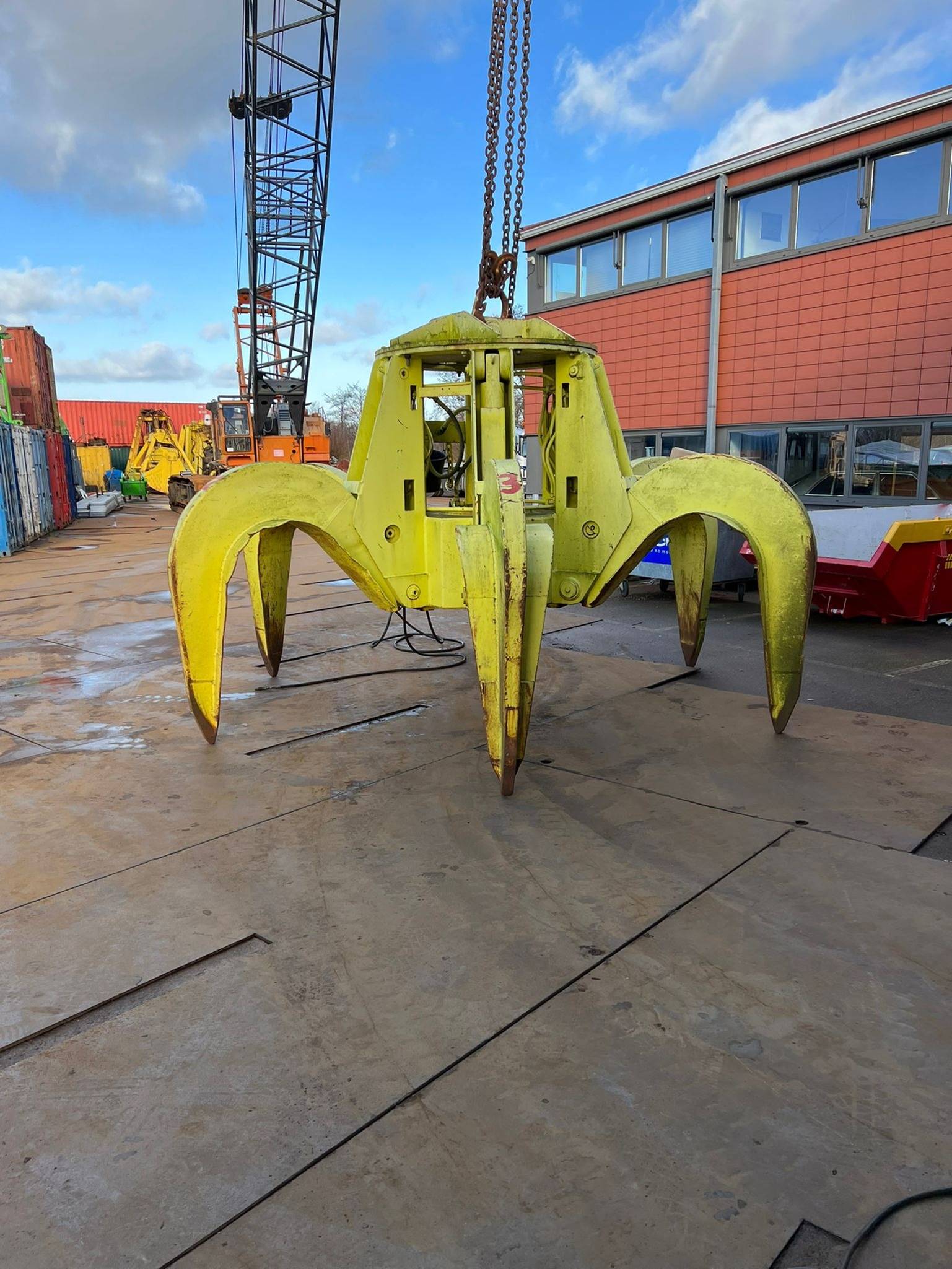

6 m³ Orange Peel Grab

Heavy-duty motor grab designed for bulk handling of scrap and loose materials.
Six-shell construction ensures efficient filling and secure load retention.
Reliable hydraulic drive with strong closing force for demanding operations.

• Type: 6203 MMG
• Execution: Motor grab, heavy duty for scrap handling
• Shell version: 6 shells, ¾ closed
• Capacity : 6.2 m³
• Empty Weight:7,200 kg
• Operating pressure: 200 bar
• Closing / Opening time: 20 s / 11 s

Main Dimensions

• A (Height closed): 2,390 mm
• B (Height open): 3,630 mm
• C (Width closed): 3,260 mm
• D (Spread open): 5,100 mm
• E (Dimension E): 1,000 mm
• F (Dimension F): 400 mm
• G (Dimension G): 2,600 mm
• H (Dimension H): 1,820 mm
• b (Pin Ø): 80 mm
• d (Pin Ø): 80 mm
