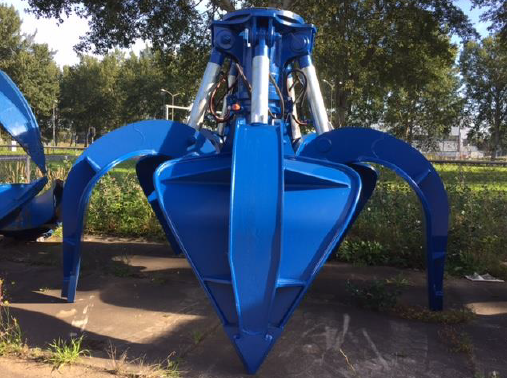

4 m³ Orange Peel Grab

Heavy-duty hydraulic orange peel grab suitable for submerged operations and offshore rock handling.
Equipped with 5 closed shells with integrated teeth (optional open shells available).
Built with Hardox/Dillidur 450 wear-resistant steel and manganese edges for maximum durability.
Reliable performance using 5 double-acting hydraulic cylinders, operating at up to 350 bar pressure.

• Type : HOPGH3500-4000
• Execution : Heavy Duty, Hydraulic, suitable for submerged/offshore rock handling
• Shell version : 5 closed shells with integrated teeth (option: open shells)
• Capacity (Max load) : 4.0 m³
• Empty Weight :  7,500 kg (excl. connection link)
• WLL : 12 tons

Main Dimensions

• pread open : approx.3,830 mm
• Spread closed : approx. 2,740 mm
• Height open : approx. 3,710 mm
• Height closed : approx. 3,180 mm

4m³ Orange Peel Grab HOPGH3500-4000
