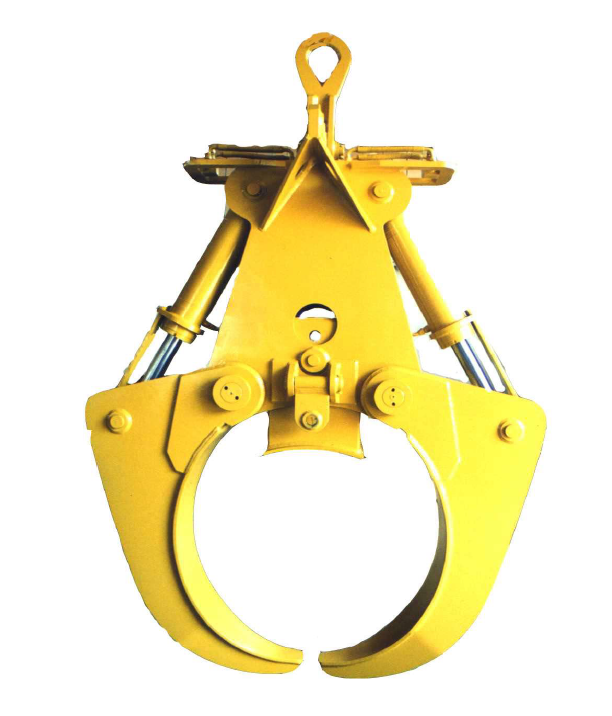

25 ton Hydraulic Block Grab

PZM-20 Grab
Heavy-duty hydraulic grab designed for handling and positioning tetrapods and large blocks.
Built with FE510 frame and Hardox 400 wear parts for maximum durability.
Equipped with powerful hydraulic cylinders for precise and reliable operation.

• Type: PZM-20 Hydraulic Block Grab
• Execution: Hydraulic, with 2 independently moving valves
• Shell version: Hardened steel (FE510 frame, Hardox 400 wear parts)
• Capacity (Max load): 25,000 kg
• Empty Weight: 2,800 kg
• WLL: 25 tons
• SWL: 27.8 tons (grab + load, approx.)

Main Dimensions

• Height closed: 2,970 mm
• Height open: 2,720 mm
• Width closed (D): 1,110 mm
• Max width closed (E): 2,300 mm
• Min width open (F): 2,400 mm
• Max width open (G): 3,500 mm
