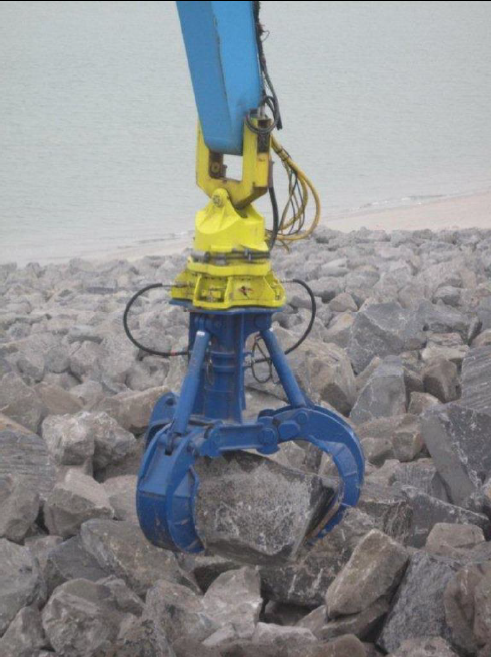

6 m³ Orange Peel Grab

HOPGH-6000
Heavy-duty hydraulic grab designed for handling rocks up to 9 tons.
Built with Hardox 450 inner blades and ESCO interchangeable teeth for maximum durability.
Reliable performance with 3 double-acting hydraulic cylinders and 350 bar operating pressure.

• Type : HOPGH-6000
• Execution : Heavy Duty, Hydraulic, designed for rock handling
• Shell version : 3 open shells with interchangeable ESCO teeth (Hardox 450 inner blades)
• Capacity (Max load) : 6 m³
• Empty Weight : 9,100 kg (9.1 ton)
• WLL : 9 tons (for handling rocks)
• SWL : 15 tons (grab + load, depending on crane capacity)

Main Dimensions

• pread open : approx.3,180 mm
• Spread closed : approx. 3,710 mm
• Height open : approx. 3,830 mm
• Height closed : approx. 2,740 mm

6 m³ Orange Peel Grab HOPGH6000
