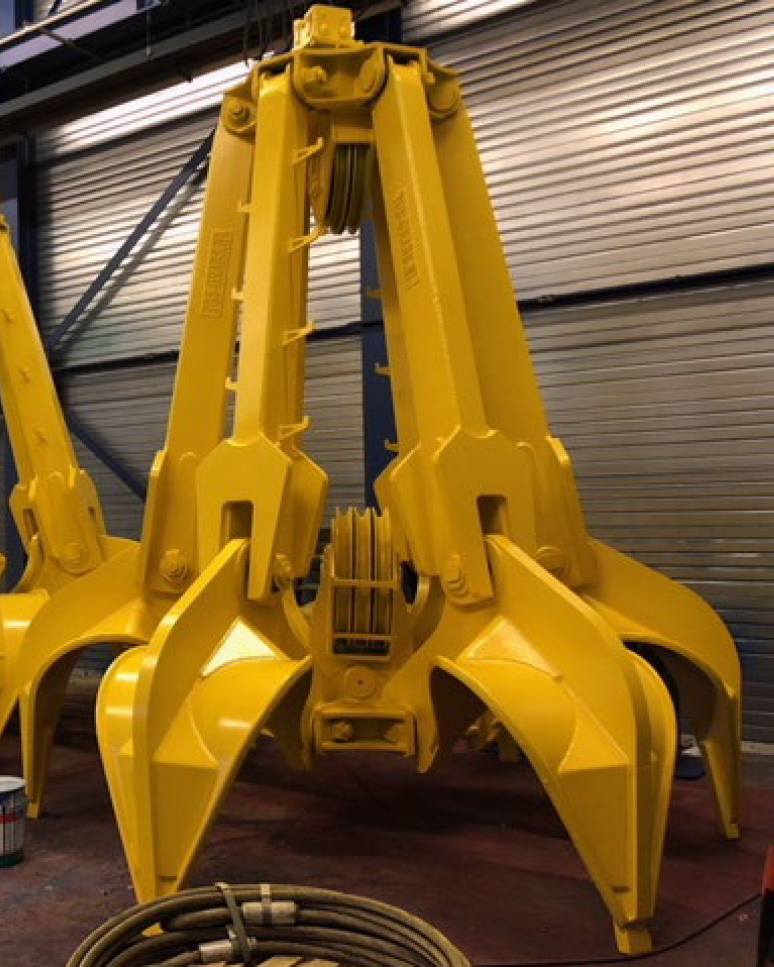

5.0 m3 orange peel

PDS832 , Extra Heavy Duty Mechanical

  • Type : MTOPGHH5000
  • Execution : 2 rope operated for handling medium sized and big rocks
  • Shell version : 6 pc. ½ in length closed shells
  • Capacity : 5 M³
  • Empty Weight : approx. 18,000 kg (18 tons)
  • WLL : 11 ton
  • SWL : 29 ton (max load + weight of the grab)
    Main Dimensions :

  • Spread open : approx. 4510mm
  • Spread closed : approx. 3290mm
  • Height open : approx. 4680mm
  • Height closed : approx. 4030mm
